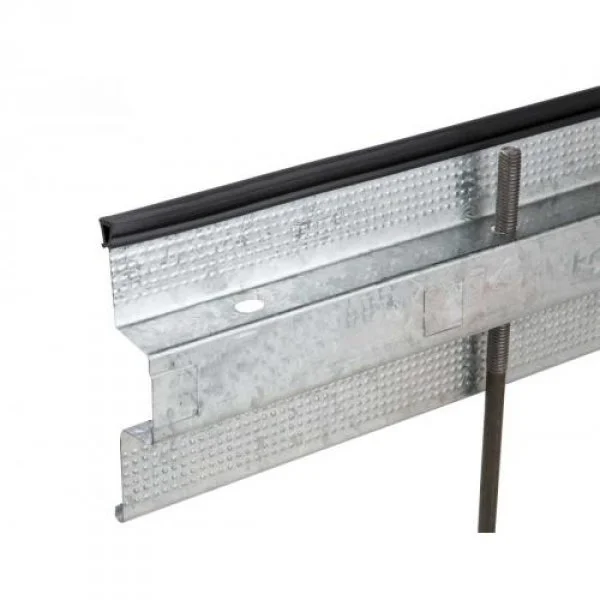

Connolly Keyjoint is a high quality preformed metal joint for the control of shrinkage cracking and differential movement in concrete slabs. The ‘key’ shape of the joint ensures the two slabs of concrete interlock, meaning the slabs will not deflect up or down from each other at the joint. This prevents dangerous trip hazards and premature breaking down of the joint from misaligned concrete.

The keyjoint (also referred to as Danley Keyjoint) comes in the following sizes to match common slab thicknesses: 100mm, 125mm, 150mm, 200mm, 250mm & 300mm. It can be supplied with a complete dowel system with plastic sleeves and steel dowels, or can be used as a stand-alone joint with no dowels.

Safari Group also stocks a full range of different capping options to suit the keyjoint, in various sizes and colours.

Save time and money with Keyjoint!

• Enables transfer of vertical loads across joints between slabs

• Allows lateral movement between slabs

• Limits vertical differential movement

• Has a rigid top edge

• Allows continuous concrete placement with preformed internal joints

• Knock-outs provide for placement of square dowels

• Supplied in 3m and 6m lengths to suit five slab thicknesses

• Available in a range of sizes

• Ideal for light traffic areas

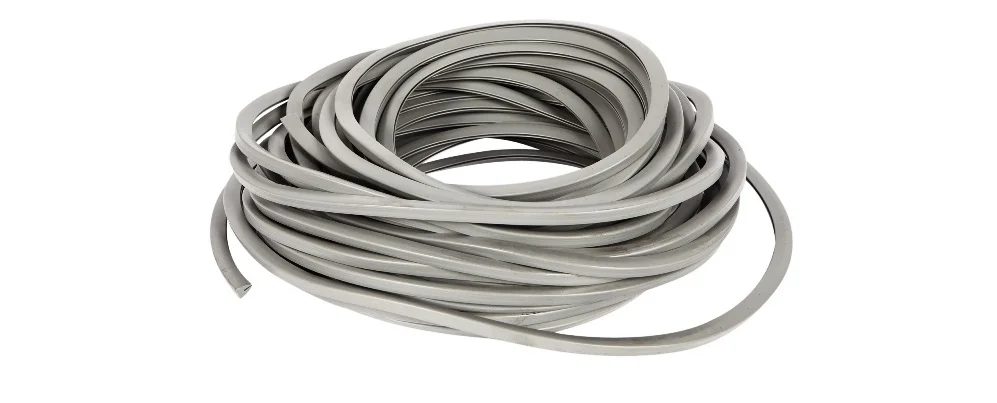

• Companion capping available for 3mm and 10mm recess

• Permanent capping with Rip-A-Strip available in two colours

Safari Building Products is a major distributor of Keyjoint and associated capping.
